Reinstall on both sides:

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

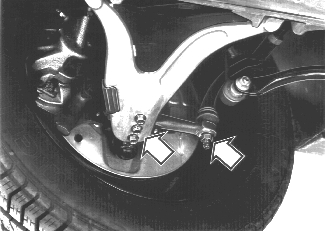

Fig 1: Identifying Tie Rod End And Ball Joint To Control Arm Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

control arm to ball joint. Use new nuts.
wheels

NOTE:

Ensure that mating faces on ball joint and link are clean and free of grease.

Tighten the nuts in order from inside and outwards.

Tighten to: 18 Nm + 120° Use protractor 9512050 .

Rust protect the area between the ball joint, link and nuts carefully, using plenty of compound. Use rustproofing agent P/N: 1 161 432-8.

(New ball joint nut torque 70 Nm .)
