Lift in engine with transmission
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

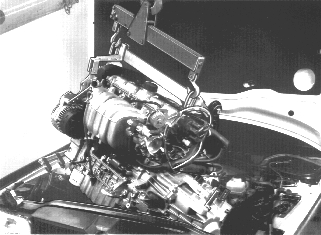

Use lifting yoke 9992810 (in version with lifting arm 9995428 .
Locate lifting yoke so that the engine is balanced.
Adjust lift angle during the lift.
CAUTION:
Check that the driveline is clear of the bodywork and other equipment.
Tighten the front engine mounting nut.
Install:
- A/C compressor
- power steering pump and collision protection system
