Install the engine cable harness

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

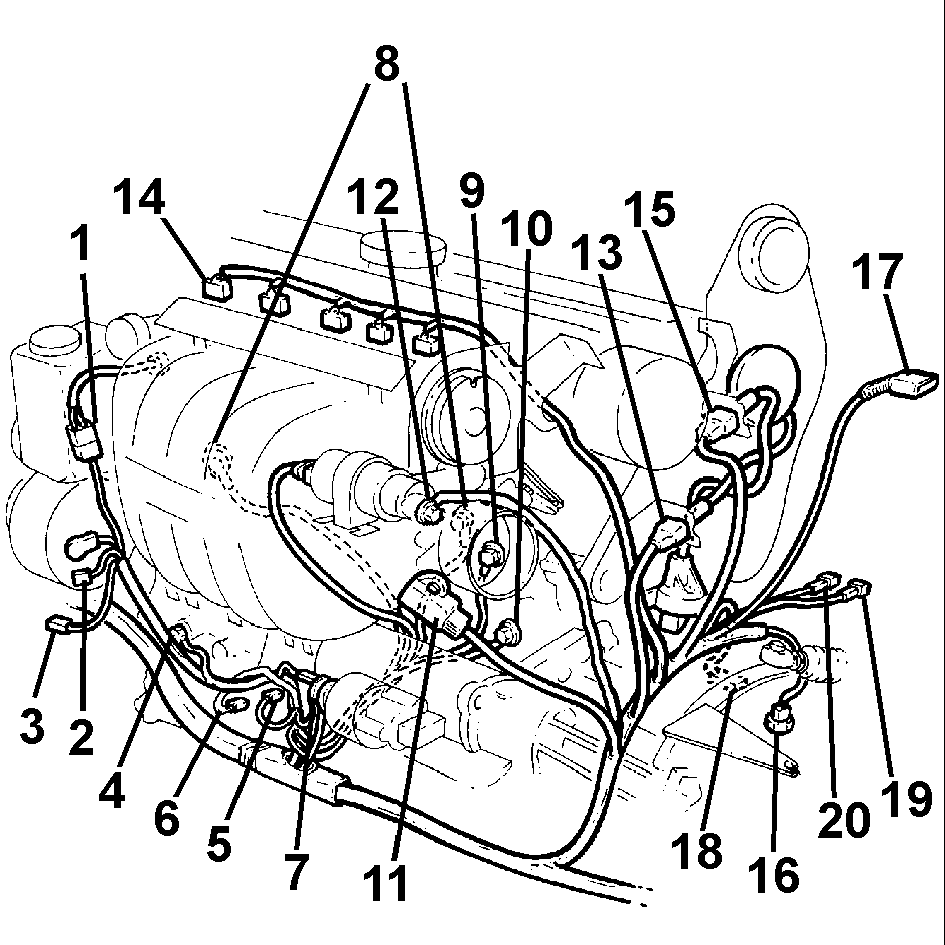

Fig 1: Identifying Engine Connectors And Clamps

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install cable duct bracket. Connect all connectors as marked earlier.

1. Thermostat

2. Generator (GEN)

3. Air conditioning (A/C) if installed

4. Ground terminal

5. Oil pressure switch

6. Oil level sensor

7. Starter motor (all)

8. Knock sensor (KS)

9. Ground terminal

10. Ground terminal

11. Throttle housing switch

12. Idle air trim

13. Flywheel sensor

14. Injectors

15. Camshaft position (CMP) sensor

16. Back-up (reversing) lamp switch

17. Mass air flow (MAF) sensor

18. Vehicle speed sensor (VSS)

19. Heated oxygen sensor (HO2S) (automatics x 2)

20. PTC element
