Install idle air trim
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

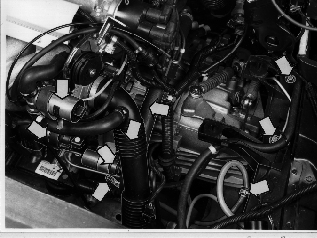

Fig 1: Identifying Idle Air Trim With Lower Charge Air Pipe, Lower Radiator Hose, Starter Motor Protective Cover And Battery Negative Lead
- negative lead to the engine, and install the clamp on the frame member
- lower radiator hose
- clutch slave cylinder to the gearboxNOTE:
(Take care that the piston does not slide out)
- slave cylinder snap ring
- the rubber air filter mountings and tighten bracket.
- idle air trim, connect connector
