Install heated oxygen sensor
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

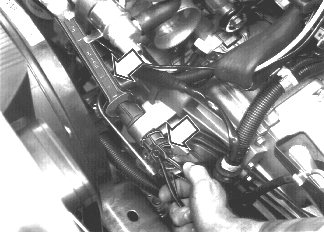

- cable to the PTC-element and heated oxygen sensor (HO2S)
Car with manual transmission:
- back-up (reversing) light switch cable
- the gear selector cables rubber mounting.
- gear selector cables to their mounting on the transmission.NOTE:
Color marking mounting/cable.
Cars with automatic transmission:
Connect connector to the transmission.
Install gear selector cable (as marked earlier)
Install two transmission oil cooler hoses and negative lead to the transmission.
