Install front and rear engine mounting screws

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

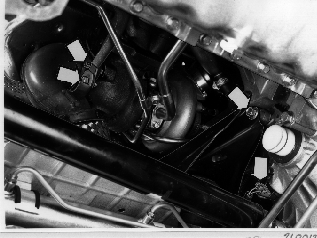

Fig 1: Identifying Exhaust Pipe's Front Flange Seal Nuts And Front/Rear Engine Pad Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

two upper exhaust pipe nuts (do not tighten them), raise the car
exhaust pipe lower nut (do not tighten them)
screw for exhaust pipe bracket. Torque to 30 Nm .
speedometer connector.
front and rear engine mounting screws. Torque to 50 Nm .
torque arm screw in the transmission, use a new screw and nut. Tighten to 35 Nm + 90° .
