Install charge air pipe

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

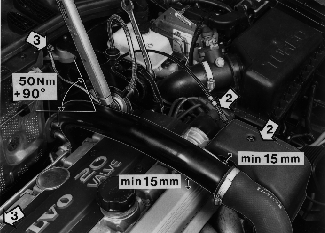

Fig 1: Identifying Upper Torque Rod Screws And Charge Air Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

upper torque rod from the engine with new screws. Tighten to 50 Nm and 90° angle
both ground strips
throttle cable to the throttle pulley and cover
charge air pipe to the turbocharger (TC) (adjust the distance to 15 mm )
