Install the flame trap

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

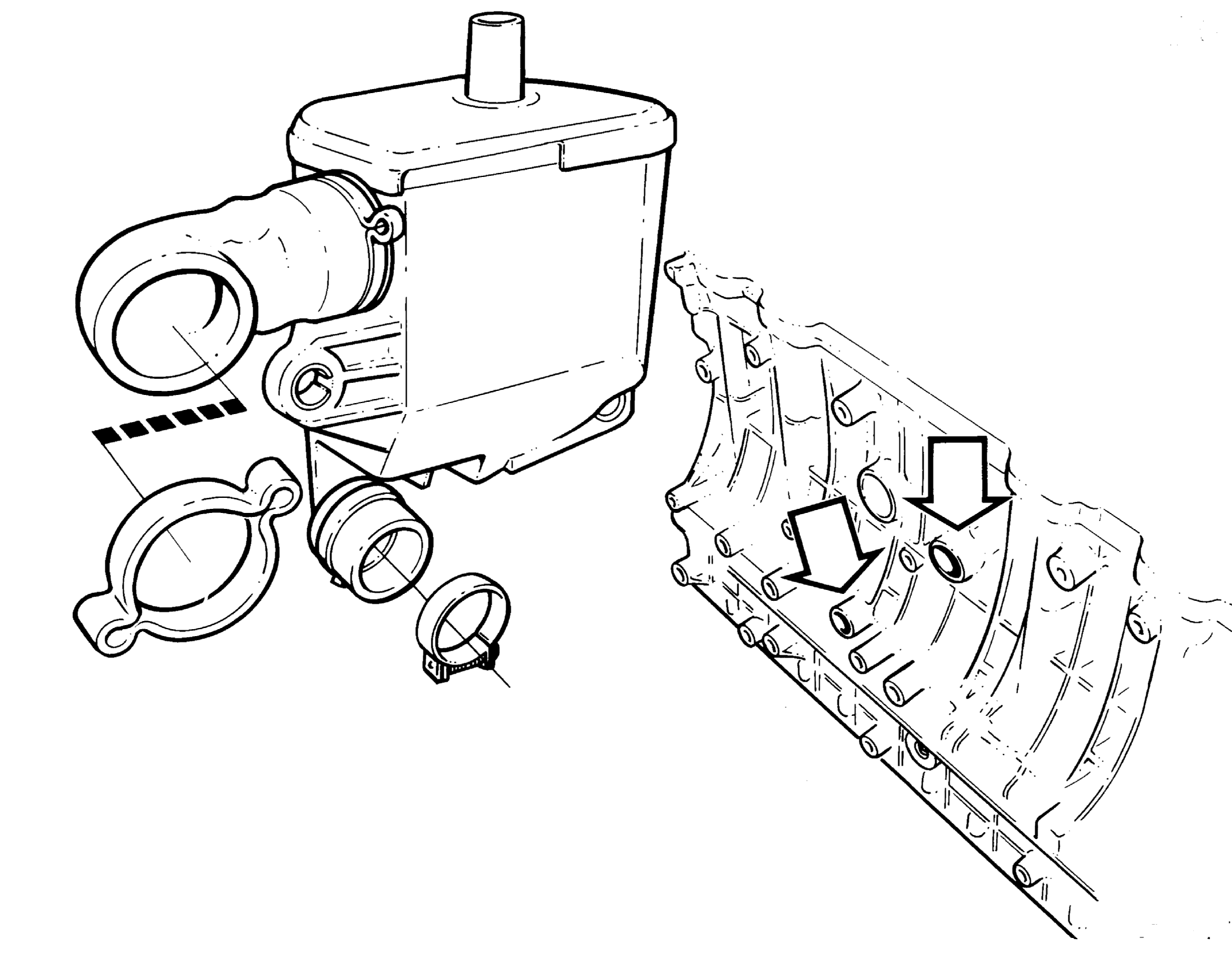

Fig 1: Identifying Hoses And Clamps

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the two flame trap hoses to the cylinder block connecting sleeves.

Install a new hose clamp for the upper hose. Tighten the lower clamp.

Install and tighten the screws to 20 Nm .

Install the intake manifold bracket loosely with the lower screw.

Install the intake manifold:

Install the intake manifold according to procedure Intake manifold/gasket, replacing .
