Remove the right front wheel

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

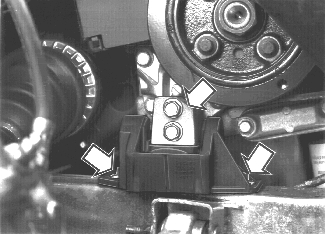

Fig 1: Identifying Engine Pad Screws
GLL125721Courtesy of VOLVO CARS OF NORTH AMERICA.

Push the fender liner slightly to one side.

Remove the four engine pad screws.
