Install the new engine pad

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

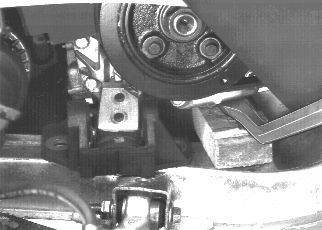

Fig 1: Identifying Engine Pad
GLL125722Courtesy of VOLVO CARS OF NORTH AMERICA.

Lift the engine slightly so that the engine pad is released, use a wooden block and jimmy bar.

Install the new  engine pad

Install the fender liner.

Reinstall the front wheel.
