Modification of crankcase ventilation with new cylinder head/engine

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

From engine number 139320 (approximately chassis number 098900) a modified crankcase ventilation has been introduced into production. A hose was added from the oil trap to the cylinder head. Only the later type of cylinder heads and engine are available as replacement parts

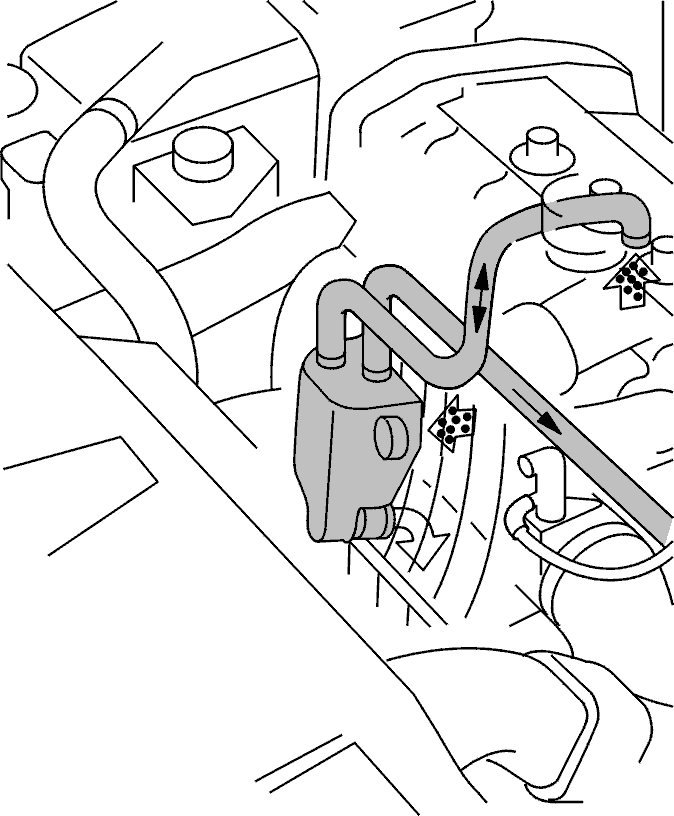

Fig 1: Identifying Upper Charge Air Pipe And Lower Charge Air Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Replacing cylinder head/engine

When replacing a cylinder head or engine, the crankcase ventilation must be upgraded to the later type.

The later type of oil trap has to be installed when replacing a cylinder head.
A hose has to be installed from the oil trap to the cylinder head.
A new ignition cable kit with a longer cable must be installed

Parts:
Oil Trap	9146756-3	1 pcs.*
Hose	9146757-1	1 pcs.
Hose Clamp	976561-1	3 pcs.
Hose Clamp	976584-3	2 pcs.
Hose Clamp	977964-6	2 pcs.
Ignition Cable Kit	9135700-4	1 pcs.

* not necessary for engine replacement.
