Installing components

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Camshaft Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

The figure above does not match exactly since the air pump has been discontinued.

Install:

the trigger wheel
Tighten to 17 Nm .
the camshaft position (CMP) sensor housing and a new cover.
Tighten to 17 Nm .
the torque rod bracket.
Tighten to 50 Nm .
the engine stabilizer brace.
Tighten to 35 Nm and angle tighten 90° .

Use angle gauge 9512050 .
the cover over the ignition coils.
Tighten to 8 Nm .
air filter cover with inlet hose.

NOTE:

Applies to cars with turbo engine:

Install charge-air pipe over the engine.
Remove seals.
Install the solenoid valves on the air filter cover.

Installing components

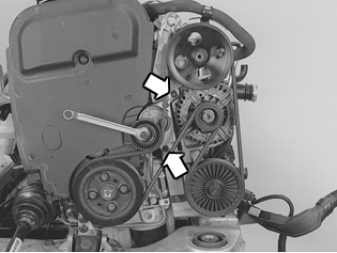

Fig 2: Identifying Belt Tensioner Mounting Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the front timing belt cover
Tighten to 12 Nm. .
the upper timing belt cover
Tighten to 8 Nm .
the auxiliaries belt
the starter motor.
Tighten to 40 Nm .

NOTE:

Applies to cars with turbo engine:

Hose for charge-air.
Remove seals.

relay bracket and electric cooling fan with fan shroud.
Tighten the clamp by the throttle housing (ETM-module).
EVAP-valve, relays, connectors.
air channels and any brake vacuum hose.
