Compress clutch
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

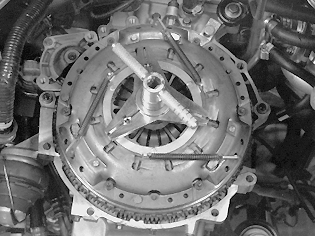

Use press tool: 9995662 , changed according to: Workshop Guide no. 213, with conversion kit: 9989741 .
- Ensure that hooks engage properly but do not compress adjustment springs.
- Center press tool and position screws.
- Fasten press tool with one hand and hold in place with the other.
- Compress clutch to relieve automatic adjustment mechanism.
- If clutch is worn counterhold automatically turns plastic holder under spring counter-clockwise until it comes in line with marking on cover.
Marking two stamped arrows.
- Then continue to screw in press tool until diaphragm spring has pressed pressure plate to a free position.CAUTION:
Plate clicks out.
- Slacken off 6 screws crosswise attaching clutch to flywheel.
- Lift down clutch and clutch driven plate.
