Remove engine coolant fan (FC)
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
- Front air intake and inlet hose to the air cleaner (ACL).
- Air duct to the control modules box.

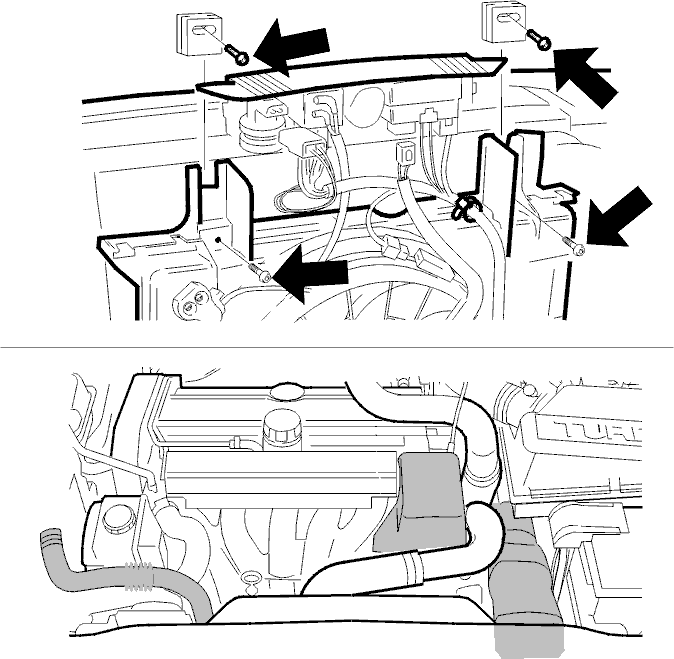

- Engine coolant fan (FC) screws (4).
Lift the upper air guide with the relay out of position.
Remove the two spacer washers located above.
