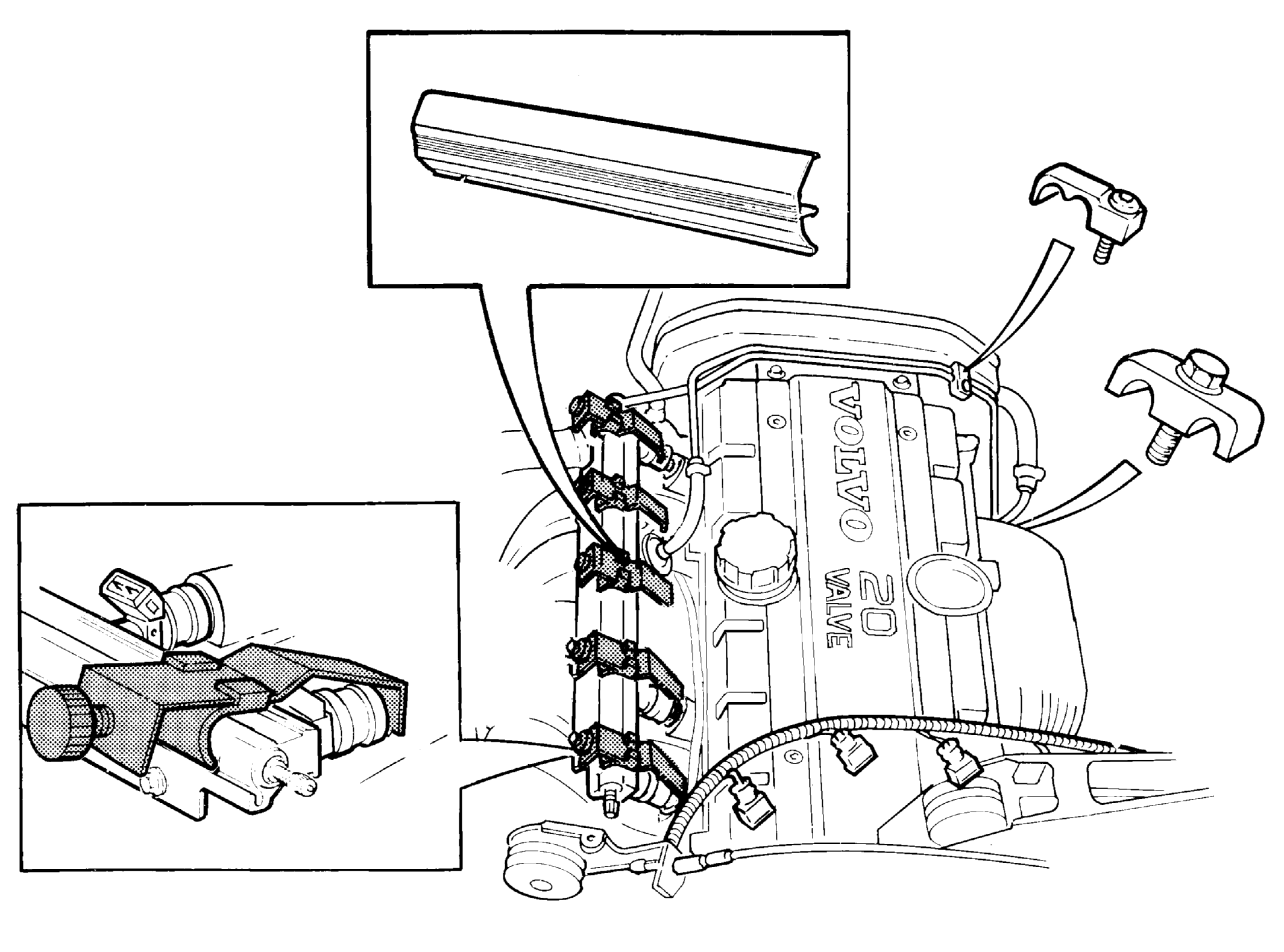

Reinstall fuel rail components
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
- All rubber insulators in the intake manifold.
- Fuel rail and two fuel line clamps.
- New screws and tighten to 10 Nm (7.4 ft.lbs.) .
- Remove tools holding injectors.
- Remove tie strap.
- Pressure regulator vacuum hose.
- Connectors on injectors. Check that there is a rubber seal in each connector.
- Fuel rail cover.
