Reinstall EGR converter

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

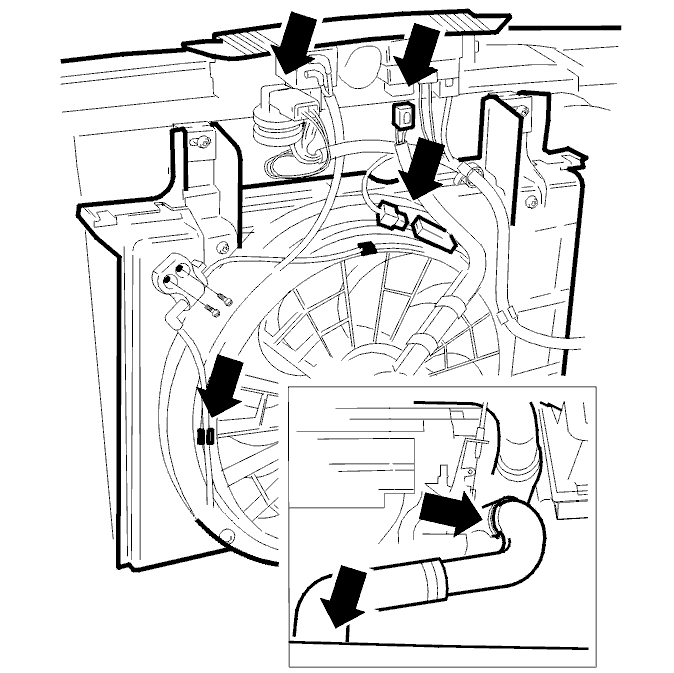

Fig 1: Identifying EVAP Valve Screws And EVAP Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

EVAP valve on the FC shroud.
Two clips on EVAP hose on FC shroud.
Charge air pipe between the intercooler (CAC) and hose on the throttle body (TB).
Slide the EGR converter into the track in the upper air guide and check that it is securely in place.

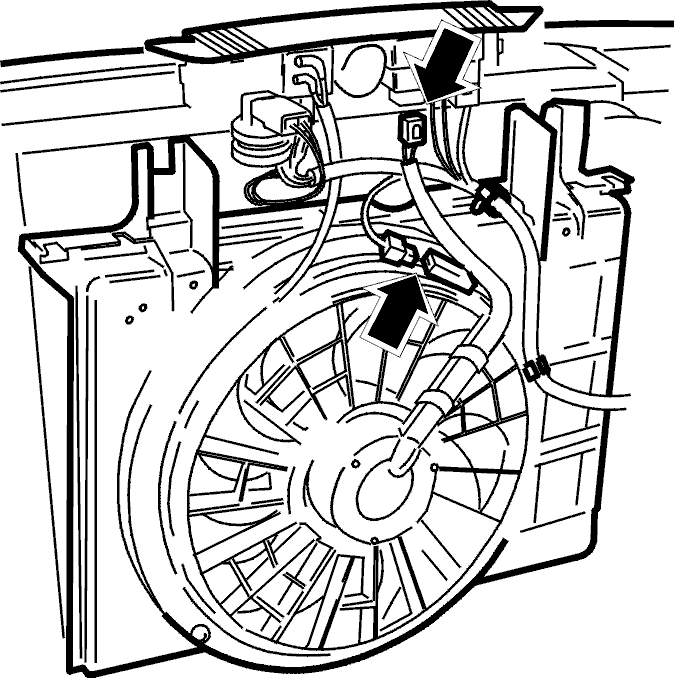

Fig 2: Identifying FC Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect FC connectors.
