Installing the lifting beam and lifting hook on the engine

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Lifting Hook Positioned Between Valve Cover And Intake Manifold

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lifting hook 9995638 consists of two sections.

Position the (straight) lifting hook between the valve cover and the intake manifold so that it engages in the exhaust manifold.

Fig 2: Identifying Lifting Hook 9995638 Positioned On Engine Lifting Lug

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the other lifting hook 9995638 on the engine lifting lug. Assemble the tools at the same time.

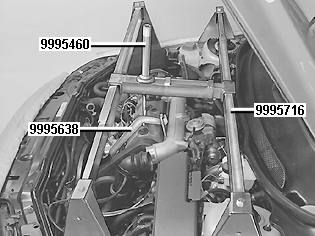

Fig 3: Identifying Lifting Beam 9995716 And Lifting Hook 9995460 Installed

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position lifting beam 9995716 above the engine.

Connect lifting hook 9995460 under the two part lifting hook. Tighten to light contact.

Raise the car
