Installing Steering Wheel Module

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Ignition In Off Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

WARNING: The battery must not be connected when the steering wheel module is removed or replaced.

Ignition off.

Fig 2: Disconnecting Battery Lead

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect battery negative lead.

Fig 3: Identifying Special Tool 9988695

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove special tool 9988695 .

WARNING: Under no circumstances use an ohmmeter or other live measuring instrument to take readings on a disconnected non deployed airbag module. This could deploy the airbag

Fig 4: Identifying Ignition On Position (Position I)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition in position I so that the steering wheel lock is disengaged.

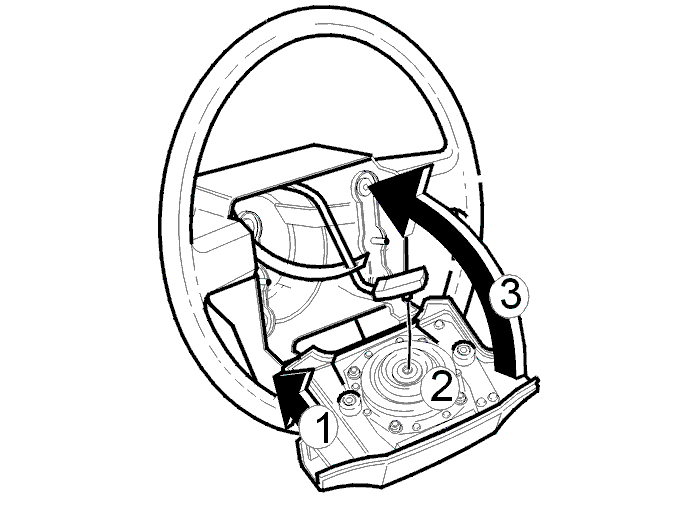

Fig 5: Identifying Steering Wheel, SRS Ignition Cable Igniter Connector And Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

Place the lower edge of the steering wheel module on the steering wheel (1).
Connect SRS ignition cable igniter connector (2) to the module.
Fold module up into the steering wheel (3). Check that the SRS ignition cable is not trapped.

Fig 6: Identifying Steering Wheel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Screw the module in place from behind. Screws (2 x Torx 30) in countersunk holes on steering wheel. Turn the steering wheel to access the screws. Steering wheel module screw tightening torque = 10 Nm (7.4 ft. lbs.).

CAUTION: Tighten the right screw first. This is important for the operation of the signal horn.
