Removing Connector From Seat Belt Tensioner

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

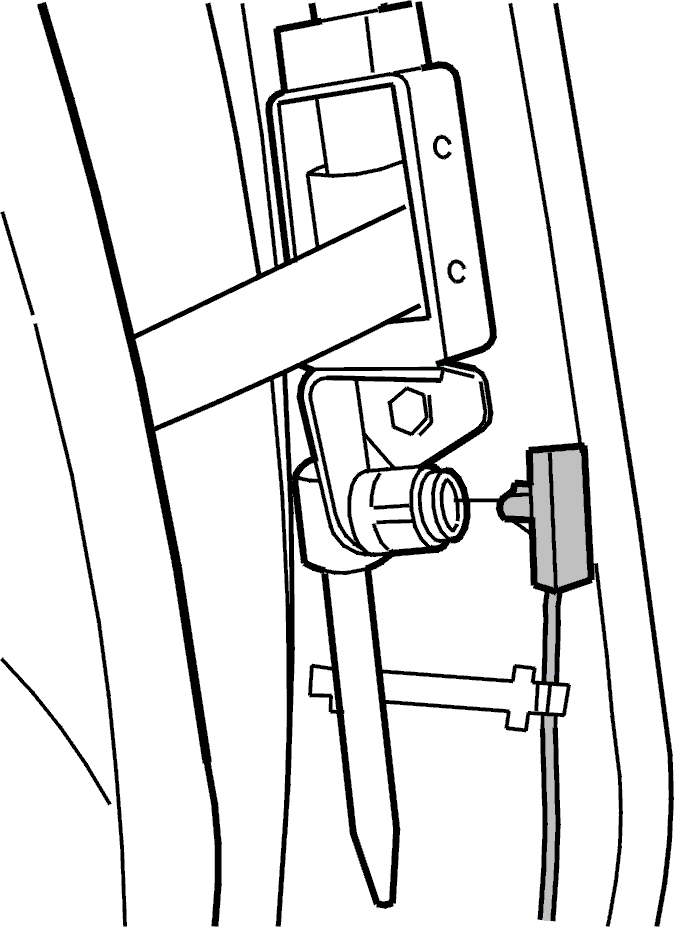

Fig 1: Identifying Connector From Seat Belt Tensioner

Courtesy of VOLVO CARS OF NORTH AMERICA.

WARNING: The battery must not be connected when SRS ignition cable igniter connector is removed or installed.

Remove SRS ignition cable igniter connector from seat belt tensioner.
