Removing "B" Post Inner Panel

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Ignition In Off Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Make a note of radio code if anti theft coded radio installed.
Ignition off.

Fig 2: Disconnecting Battery Lead

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect battery negative lead.

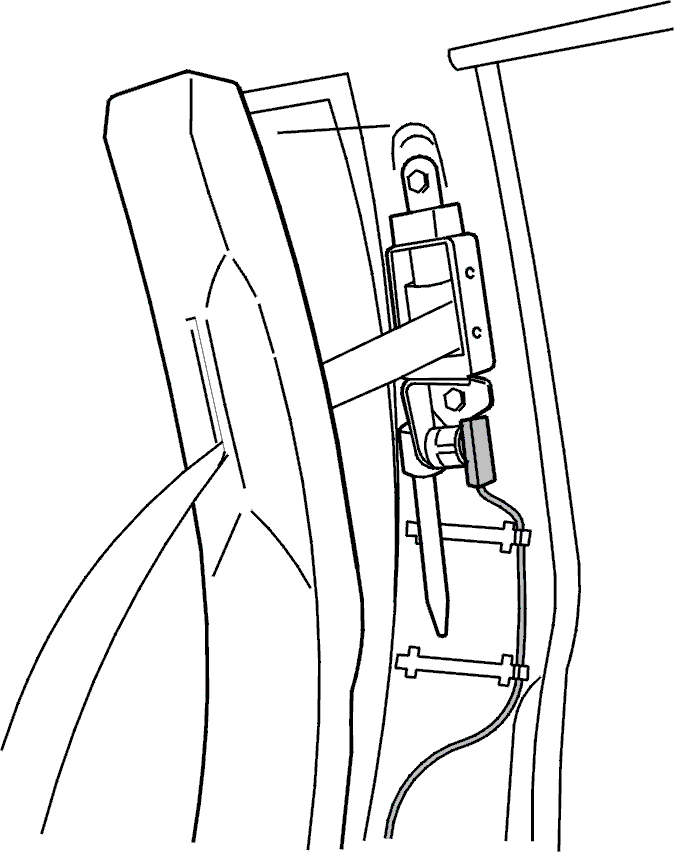

Fig 3: Identifying "B" Post Inner Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove "B" post inner panel. Pull off (attached with clips).
