Removing Front Seat

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

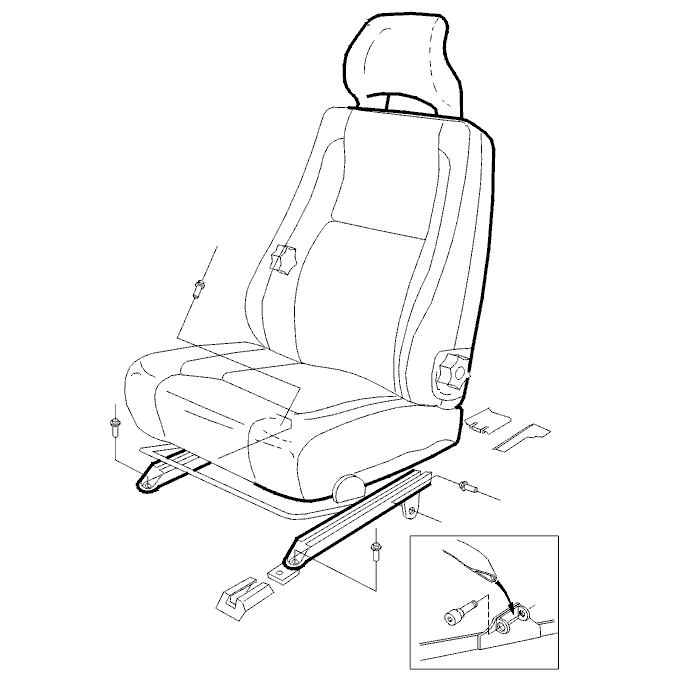

Fig 1: Identifying Seat Belt From Seat Mounting, Panels And Mounting Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove seat belt from seat mounting (1 x 12 mm bolt).
Push seat forward.
Remove panels and 2 mounting bolts (14 mm) from the rear edge of the seat rails.
Push seat back.
Remove panel and 2 mounting bolts (14 mm) from the front edge of the seat rails.

Fig 2: Identifying Ignition In Off Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Make a note of radio code if anti theft coded radio installed.
Ignition off.

Fig 3: Disconnecting Battery Lead

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect battery negative lead.
Disconnect the connectors from the front seat (under the seat by the front edge of the seat rail).
Lift the seat straight up so that the guide pins on the underside of the seat rails are freed from their holes in the floor.
