Installing the Cigarette Lighter Compartment

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

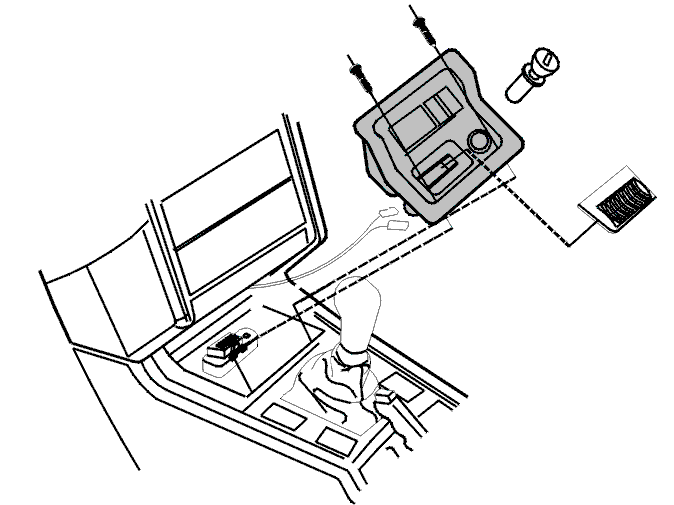

Fig 1: Identifying Cigarette Lighter Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

the 2 connectors for the cigarette lighter socket and bulb holder in the cigarette lighter compartment.
the OBD-II connector to the cigarette lighter compartment. Press in the connector and slide it to the side.
the cigarette lighter compartment (2 Torx 20 screws).
the OBD-II cover.
the cigarette lighter.
