Installing the Center Console

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

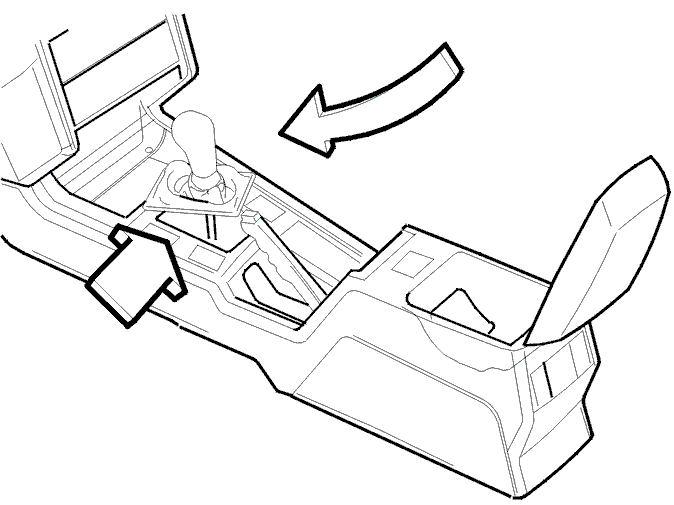

Fig 1: Identifying Center Console And Gear Shifter

Courtesy of VOLVO CARS OF NORTH AMERICA.

The parking brake must be applied and the gear selector lever in neutral.
Install the center console by carefully lowering it and pushing it forward a little at the same time.
If the car has a manual gearbox;
Install the gear selector lever boot. Push the gear selector lever boot through the opening in the center console and press the trim into the center console.

Fig 2: Identifying Center Console Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the connectors at the front of the center console.

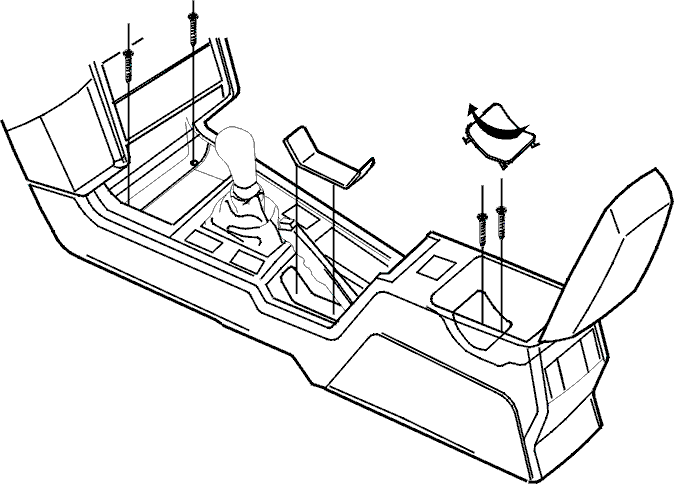

Fig 3: Identifying Handbrake Opening Cover, Panel In Center Console Locker, And Torx Screws Under Panel In Center Console Locker

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

the 2 Torx 15 screws at the front of the center console.
the cover for the handbrake opening.
the 2 Torx 20 screws under the panel in the center console locker.
the panel in the center console locker.
NOTE: Install the rear edge of the panel first.
