Replacing An SRS Ignition Cable For A Deployed Passenger Module

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

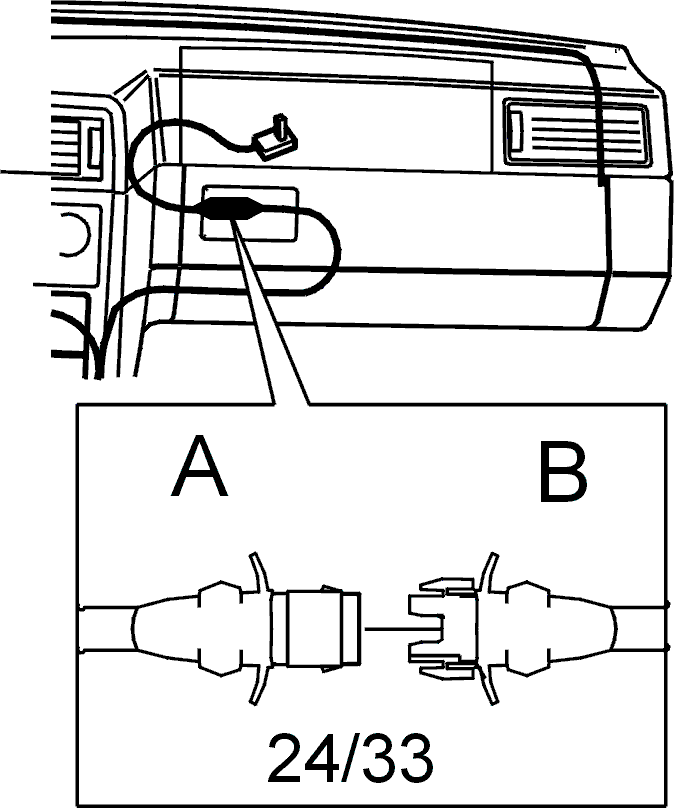

Fig 1: Identifying SRS Ignition Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION: If the airbag module has been activated, the SRS ignition cable should also be replaced. The SRS ignition cable igniter connector may be damaged by the heat generated by deployment.

If replacing a non deployed passenger module

During routine service for example, the SRS ignition cable need not be replaced.
Continue on next step below.

Fig 2: Identifying Deployed Passenger Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

If replacing a deployed passenger module

After a collision for example, the SRS ignition cable must be replaced as follows.
Disconnect the 2 pin connector 24/33 on the passenger module SRS ignition cable.
Cut off cable grips.
Remove SRS ignition cable.
Install new SRS ignition cable.
Connect the 2 pin connector 24/33 on the passenger module SRS ignition cable.
Replace cable grips.
