Removing Of Dashboard Vents

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

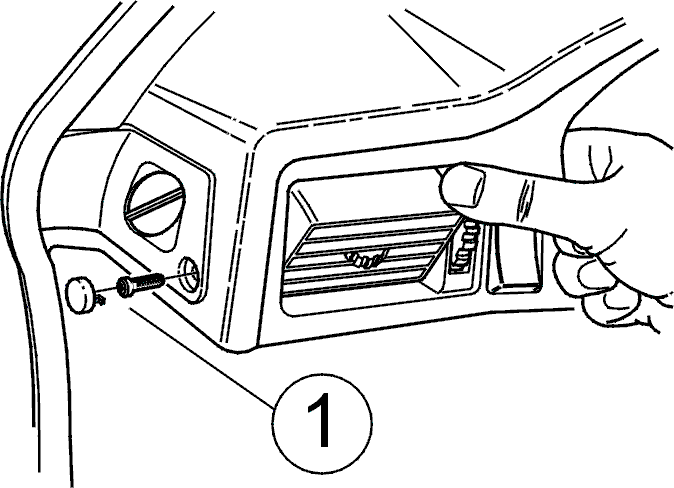

Fig 1: Dashboard Vent Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

plug and screws (2 x Torx 25) from the side defroster dashboard vent on the driver's side and the side defroster dashboard vent on the passenger side. See (1) in figure which shows left side.

Fig 2: Dashboard Vents

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

side defroster dashboard vent driver's side.
the two center dashboard vents.
When removing dashboard vents. Twist vents downwards and pull out or carefully pry with a screwdriver at the side and pull out.
