Removing Connector From Passenger Module
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
The battery should not be connected when SRS ignition cable igniter connector is removed or installed.
Remove

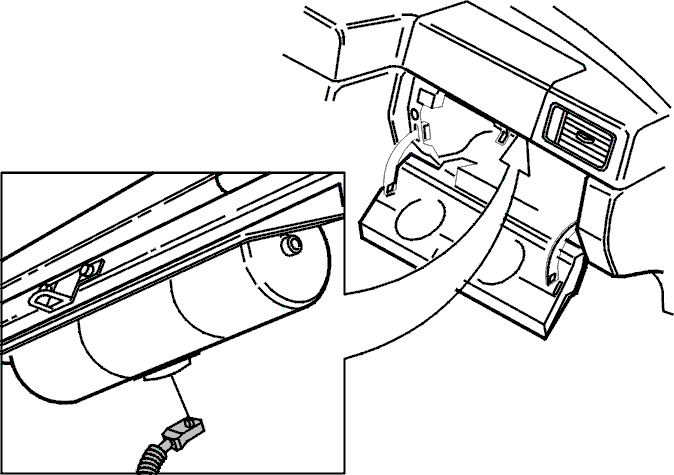

- SRS ignition cable igniter connector from the underside of the passenger module.
WARNING:
Under no circumstances use an ohmmeter or other live measuring instrument to take readings on a disconnected non deployed airbag module. This could deploy the airbag
