Removal Of Passenger Module From Cover

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

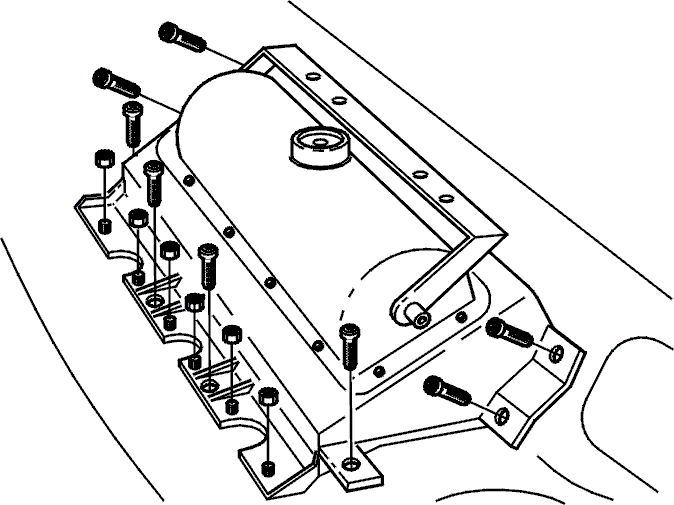

Fig 1: Identifying Passenger Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

WARNING: Under no circumstances use an ohmmeter or other live measuring instrument to take readings on a disconnected non deployed airbag module. This could deploy the airbag.

The module is secured to the cover with 8 screws and 6 nuts.

CAUTION: Only remove the screws and nuts indicated in the figure.

screws (8 x Torx 25).
nuts (6 x 8 mm).
passenger module from cover.

WARNING: The passenger module must never be taken apart, repaired or moved to another vehicle. Follow instructions in accordance with Handling Non-Deployed Airbag Modules/Pyrotechnic Seat-Belt Tensioners , handling a replaced module.
