Removing Soundproofing Panel And Knee Bolster

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

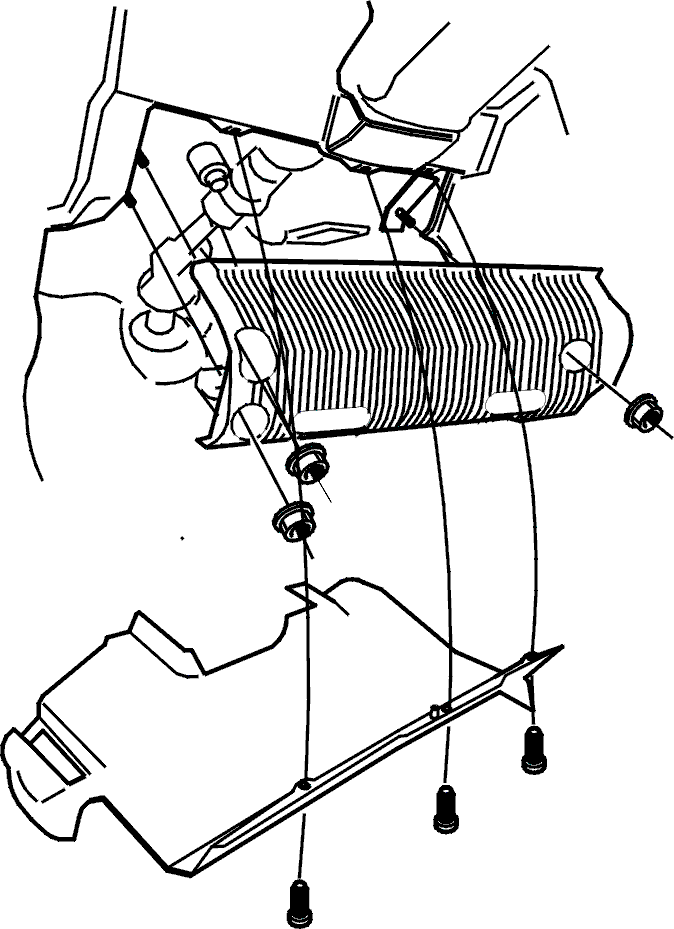

Fig 1: Identifying Soundproofing Panel And Knee Bolster

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: The figure shows the driver's side. The method of replacing the knee bolster is basically the same on both sides.

Remove

soundproofing panel, (3 x Torx 25).
knee bolster, (3 x 13 mm nuts).
The knee bolster may still be secure when the nuts have been removed.

HINT: If the knee bolster is still secure, pry it loose from the outer edge.
