SIPS Bag Detonated Or Service Replacement: Preparations

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The SIPS bag must not be repaired. The SIPS bag is always replaced as a complete unit, consisting of sensor unit, igniter cable and cushion module.

NOTE: When replacing the upholstery on the backrest, use Volvo original seat upholstery or seat upholstery for SIPS bag approved by Volvo.

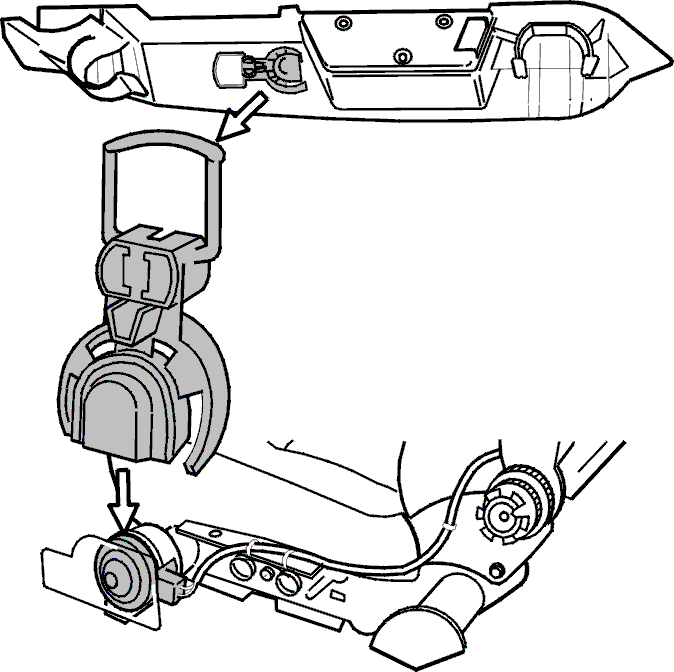

Fig 1: Identifying Transport Deactivator And Sensor Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

If the SIPS bag has not detonated

First secure the SIPS bag

Fold up the seat compartment. Lift up the front edge and press the compartment backward.
Remove the transport lock from the holder on the inside of the seat compartment.
Install the transport lock on the sensor unit.
