If the Removed SIPS Bag Is To Be Scrapped

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

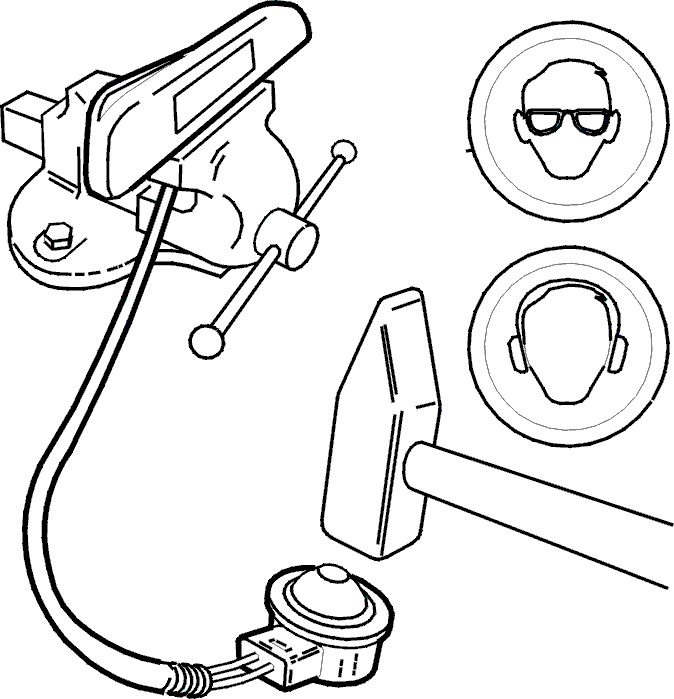

Fig 1: Identifying SIPS Bag Cushion Module's Assembly Bracket In Vice

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that the transport lock is fitted on the sensor unit.
Secure the SIPS bag cushion module's assembly bracket in a vice, so that the cushion is directed away from the sensor unit.

Make sure that the cushion module is fitted correctly in the vice and that there are no loose parts around the SIPS bag.

Remove the transport lock from the sensor unit.
Stand so that the cushion is directed away from the sensor unit. Stand as far from the cushion module as possible.
Hit the middle of the sensor unit with a hammer.
