Steering Wheel With Switches: Assembling: Conclusion

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

SRS Airbag Date Decal

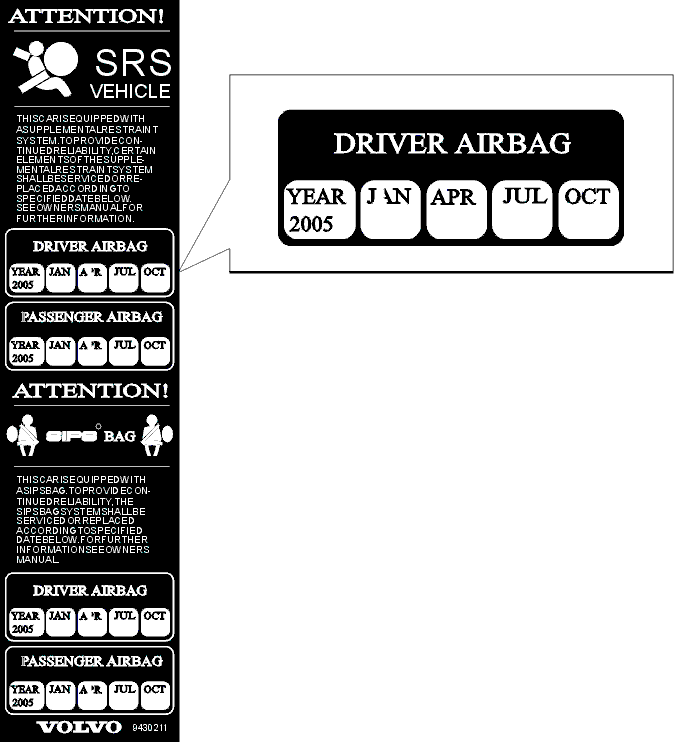

Fig 1: Identifying SRS Air Bag Date Label

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Do not forget to replace the steering wheel module decal on the driver's side B-post with a new decal.

The date decal is supplied with the new passenger airbag module.

Ignition in position II. Reconnect battery negative lead

Fig 2: Ignition In No. 2 Position And Connecting Negative Cable To Battery

Courtesy of VOLVO CARS OF NORTH AMERICA.

WARNING: Ensure that nobody is in the car when the battery is being connected.

Check that:

the steering wheel can be turned easily.
the horn is working by pressing the four corners of the steering wheel module.
the SRS indicator lamp in the combined instrument panel is not lit all the time.
If the lamp is lit see Service Information Section 8 (88) SRS (Airbag) 850.

NOTE: Check that the SRS indicator lamp is intact by turning the key to position II. The SRS indicator lamp should light and go out after approximately 15 seconds.
