Installing Seals On Dashboard Frame

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

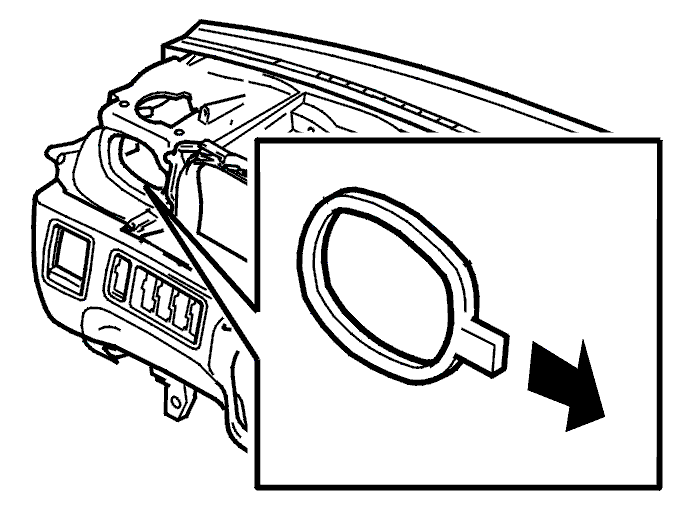

Fig 1: Identifying Dashboard Frame Seal (1 Of 3)
GLL102479Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove backing.

Press the seal into place with the lug towards the combined instrument panel.

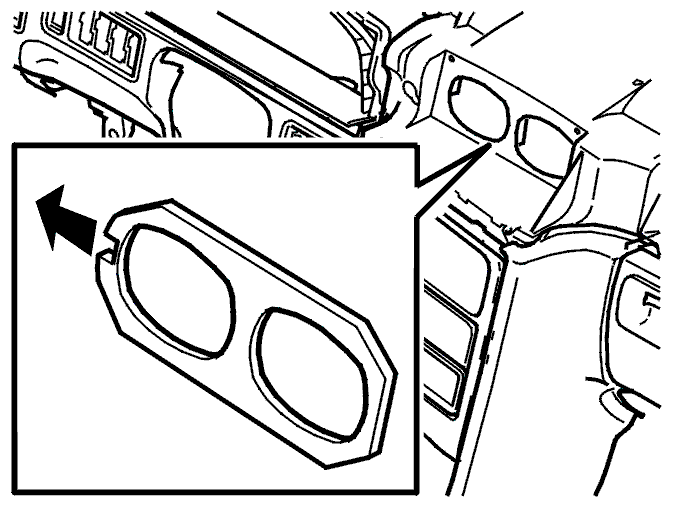

Fig 2: Identifying Dashboard Frame Seal (2 Of 3)
GLL102480Courtesy of VOLVO CARS OF NORTH AMERICA.

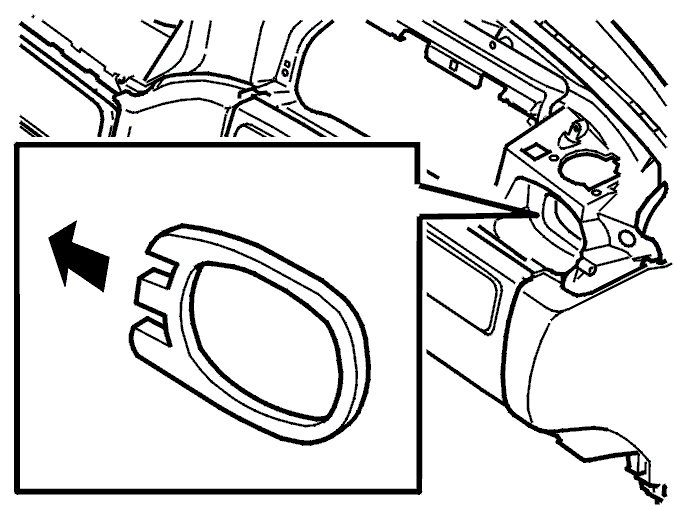

Fig 3: Identifying Dashboard Frame Seal (3 Of 3)
GLL102481Courtesy of VOLVO CARS OF NORTH AMERICA.
