Replacing Lock Cylinder

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

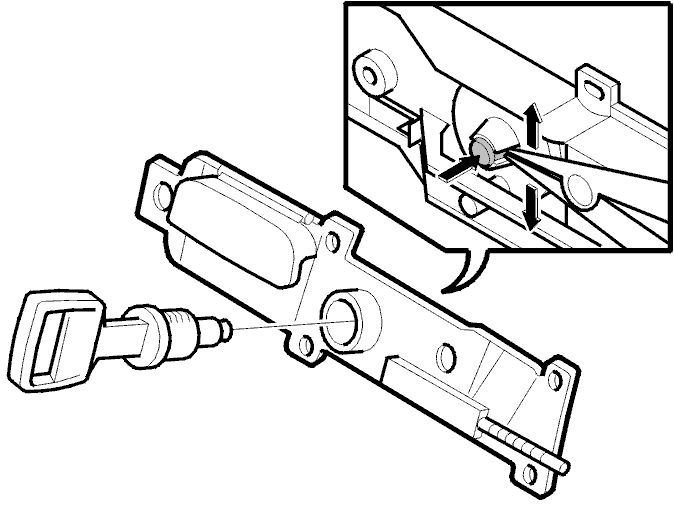

Fig 1: Identifying Lock Cylinder

Courtesy of VOLVO CARS OF NORTH AMERICA.

Open the lock lug using circlip ring pliers.

Press out lock cylinder.

NOTE: The key must be in the lock.
