Disassembling And Assembling

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

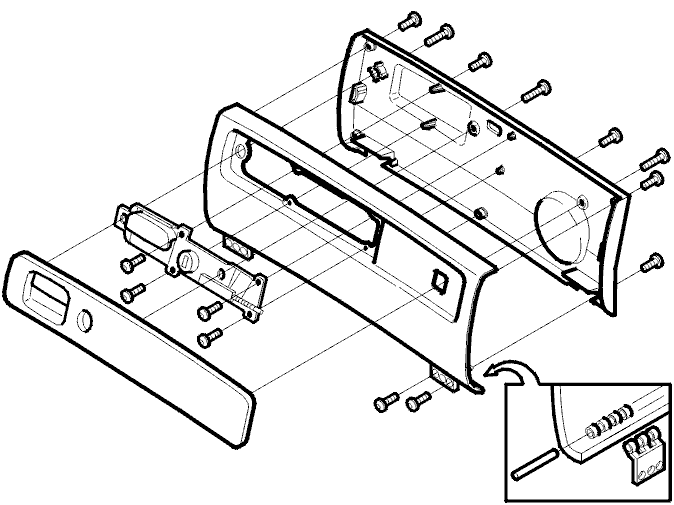

Fig 1: Identifying Back, Lock Unit And Hinge Pins

Courtesy of VOLVO CARS OF NORTH AMERICA.

Back, 8 Torx 20

Lock unit, 4 Torx 10

2 hinge pins
