Wiper Motor Mounting And Dashboard Screws

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

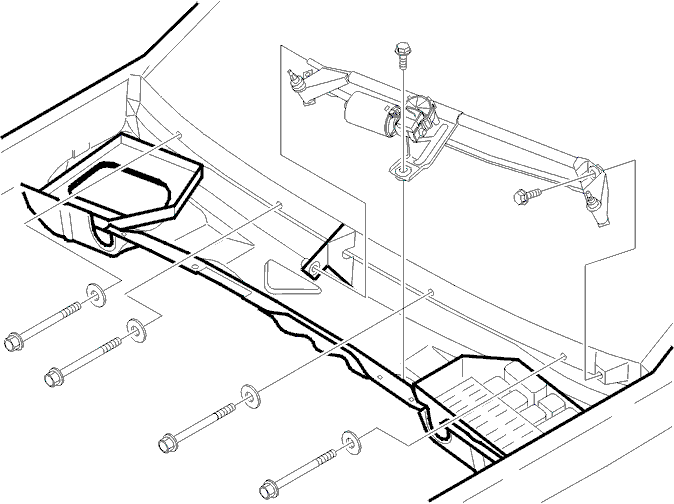

Fig 1: Identifying Wiper Motor Mounting Nuts And Dashboard Screws
GLL125041Courtesy of VOLVO CARS OF NORTH AMERICA.

2 10 mm nuts for the wiper motor mounting.

Connector

4 10 mm M6 screws for the dashboard.
