Right-Hand Side Soundproofing Panel

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

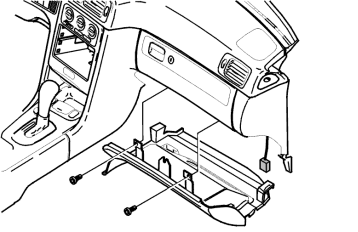

Fig 1: Identifying Right-Hand Side Soundproofing Panel Torx Screws
GLL127361Courtesy of VOLVO CARS OF NORTH AMERICA.

The glove compartment must be removed to access the screws, see Glove Compartment .

2 Torx 20 screws behind the edge of the glove compartment.
