Cable Harness Routing

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

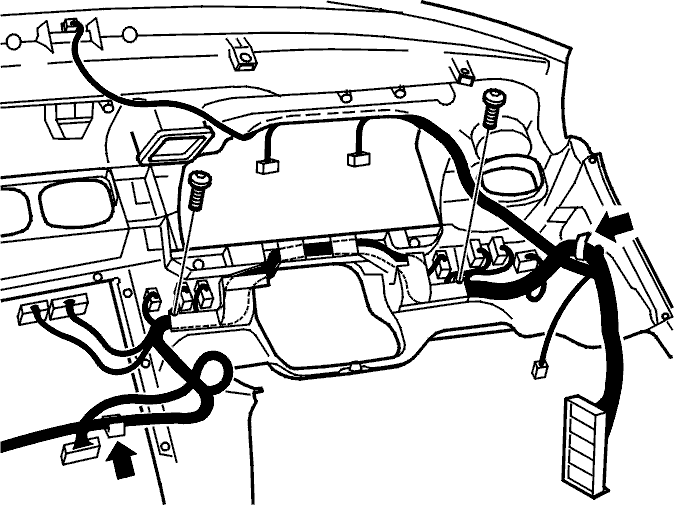

Fig 1: Identifying Cable Duct Torx Screws, Cable Harness, And Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

(The illustration shows the reverse of the dashboard)

2 Torx 20 screws holding the cable duct.

The cable harness is secured with clips. The securing points are marked with arrows.

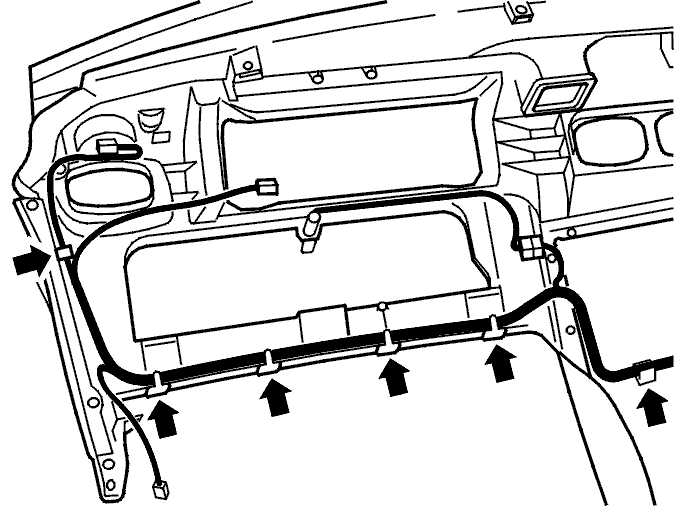

Fig 1: Identifying Cable Harness Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

(The illustration shows the reverse of the dashboard)

The cable harness is secured with clips. The securing points are marked with arrows.
