Air Vent Housing And Air Ducts

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

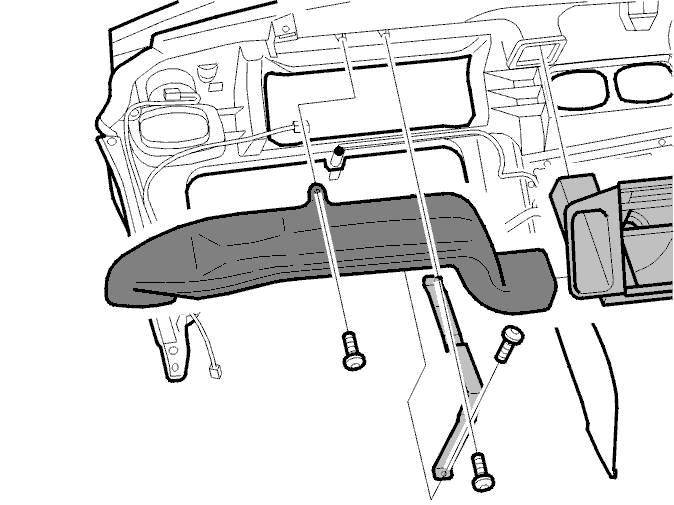

Fig 1: Identifying Air Vent Housing And Air Ducts Torx Screws (Reverse Side Of Dashboard) -- 1 Of 2

Courtesy of VOLVO CARS OF NORTH AMERICA.

(The illustration shows the reverse of the dashboard)

3 Torx 20 screws.

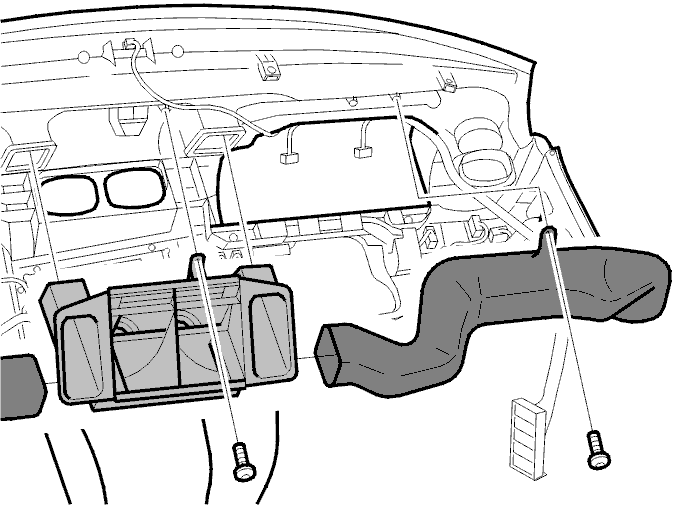

Fig 1: Identifying Air Vent Housing And Air Ducts Torx Screws (Reverse Side Of Dashboard) -- 2 Of 2

Courtesy of VOLVO CARS OF NORTH AMERICA.

(The illustration shows the reverse of the dashboard)

2 Torx 20 screws.
