Vacuum - Cleaning The Evaporator

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

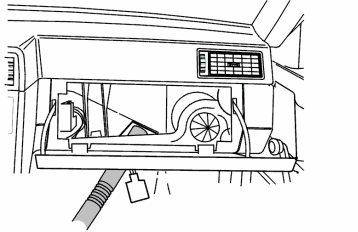

Fig 1: Vacuum - Cleaning Evaporator
GLL137563Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean the evaporator as much as possible with vacuum-cleaner through the hole in the evaporator housing for the power unit/fan resistor.
