Pressure Switch Installation

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

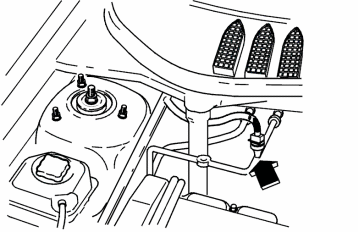

Fig 1: Pressure Sensor Removal -- 850, S70, V70 (-00), V70XC (-00), C70 (-05)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to the 850, S70, V70 (-00), V70XC (-00), C70 (-05)

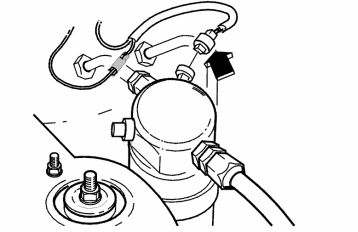

Fig 2: Pressure Sensor Removal -- Applies To S40 (-04), V40

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to the S40 (-04), V40

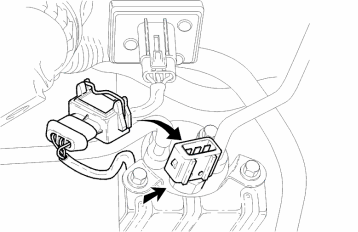

Fig 3: Pressure Sensor Removal -- Applies To 740 (91-92), 760 (88-90), 780 (88-91), 940, 960, S90, V90

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to the 740 (91-92), 760 (88-90), 780 (88-91), 940, 960, S90, V90

Check the A/C function.
