Install the Power Unit Or Fan Resistor

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

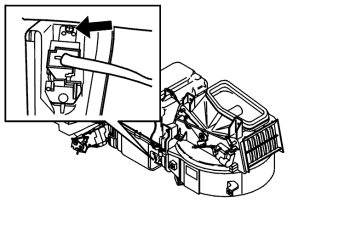

Fig 1: Power Unit Or Fan Resistor -- 850, S70, V70 (-00), V70XC (-00), C70 (-05)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to the 850, S70, V70 (-00), V70XC (-00), C70 (-05)

Install the glove compartment.

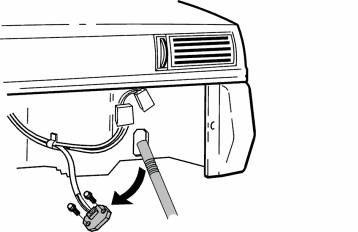

Fig 2: Power Unit Or Fan Resistor -- S40 (-04), V40

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to the S40 (-04), V40

Install soundproofing under the glove compartment.

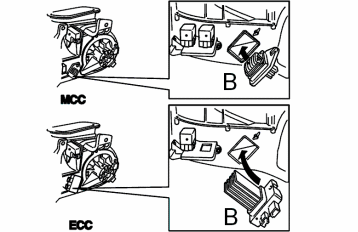

Fig 3: Power Unit Or Fan Resistor -- 740 (91-92), 940 With AC

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to the 740 (91-92), 940 with AC

Install glove compartment and soundproofing.

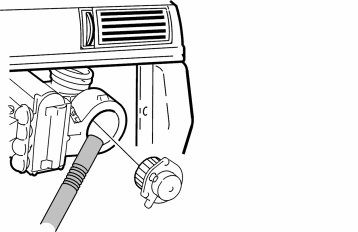

Fig 4: Power Unit Or Fan Resistor -- 740 (91-92), 780 (88-91), 940 With ECC

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to the 740 (91-92), 780 (88-91), 940 with ECC

Install glove compartment and soundproofing.

Fig 5: Power Unit Or Fan Resistor -- 60 (88-90), 960, S90, V90 With ECC

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to the 760 (88-90), 960, S90, V90 with ECC

Install glove compartment, soundproofing and fan motor.
