Cleaning New Evaporator

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

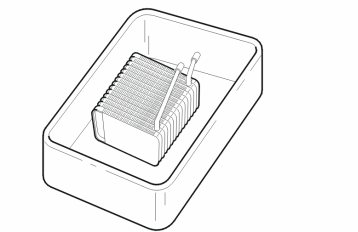

Fig 1: Evaporator In Basin

Courtesy of VOLVO CARS OF NORTH AMERICA.

The evaporator shall be treated with odor remover before installing it in the car.

Place the evaporator in a basin. Treat the evaporator with the odor treatment AC. Turn the evaporator during treatment so that all external surfaces become coated with the agent. Ensure that the agent passes through the evaporator's cooling fins.

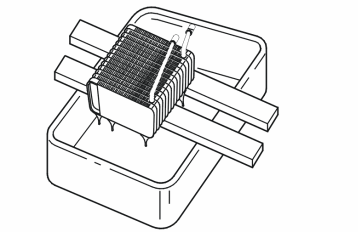

Fig 2: Evaporator Laid To Allow Excess Agent Run Off

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lay the evaporator so that excess agent runs off.

Let the evaporator dry before installing it.

Install the dryer unit for the evaporator acc. to service bulletin 8-87-821 in connection with the evaporator change.

Install the evaporator.
