Water Pump

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

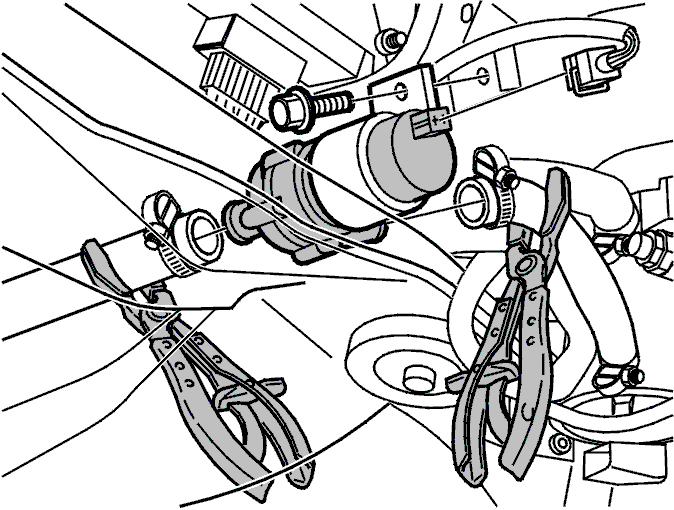

Fig 1: Identifying Rear Engine Coolant Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install hose clamps on both hoses connected to the water pump.

Position a container under the water pump to collect coolant.

Disconnect water pump hoses.

Disconnect the water pump connector.

Remove the screw holding the water pump to the bracket.

Remove the water pump holder.

NOTE: Note the position of holder on the water pump.
