Heat Exchanger And Fan Shroud

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

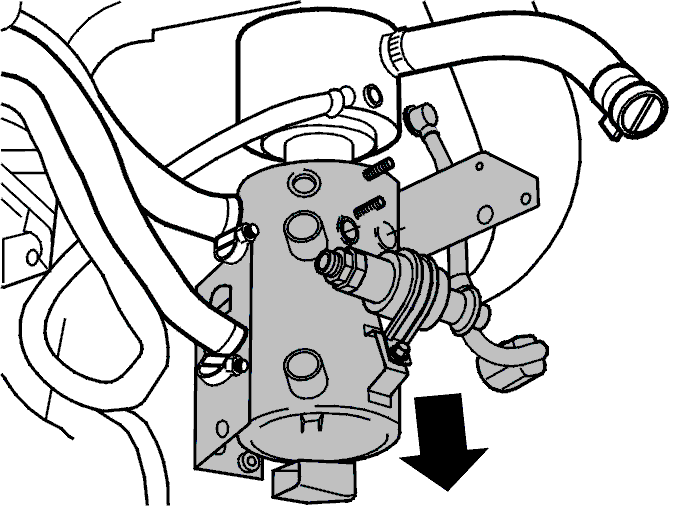

Fig 1: Identifying Heat Exchanger, Fan Shroud And Combustion Unit
GLL136594Courtesy of VOLVO CARS OF NORTH AMERICA.

Separate the heat exchanger from the fan shroud and combustion unit (3 screws).

Hang up the fan shroud on the heater bracket.

Disconnect the engine coolant hoses from the heat exchanger.

Remove heat exchanger.
