Connector, Glow Plug And Inlet Hose

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

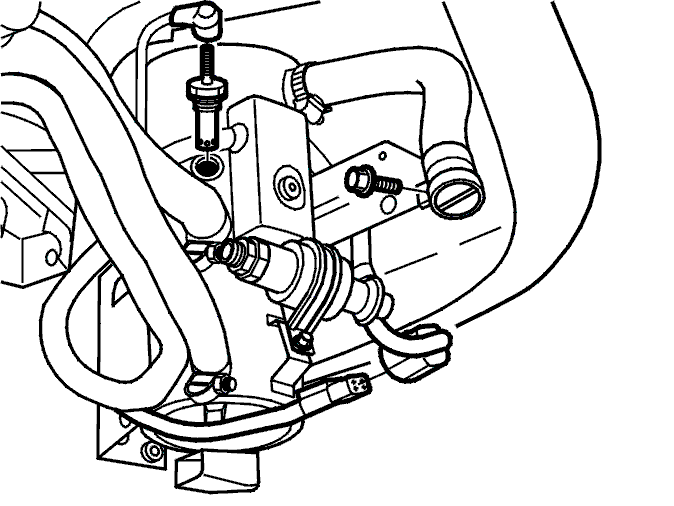

Fig 1: Identifying Outside Temperature Sensor
GLL136592Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the fuel pump connector from the bracket and disconnect the connector.

Remove glow plug.

Disconnect inlet hose from heat exchanger bracket.
