Components Under the Cover
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

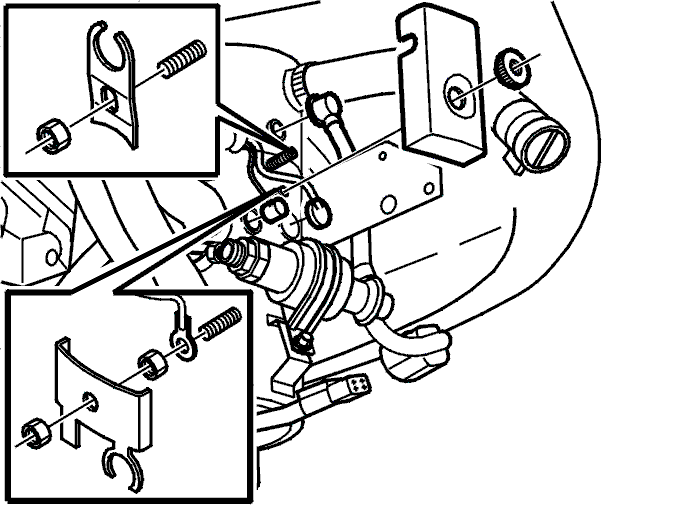

Fig 1: Identifying Heat Exchanger Ground Lead, Coolant Temperature Sensor And Overheat Protection Thermostat With Holder
WARNING:
Protective gloves and protective goggles should be used for the following operations because of the risk of fuel spillage.
Remove cover over coolant temperature sensor, overheat protection thermostat and fuel line quick-release connector.
Remove coolant temperature sensor and overheat protection thermostat holder.
Remove the coolant temperature sensor from the heat exchanger by pulling it straight out.
Disconnect the ground terminal on the heat exchanger.
Remove the outside temperature sensor from the heat exchanger.
Remove the holder for the quick-release connector between the fuel line and nozzle pipe.
Disconnect the quick-release connector between the fuel line and nozzle pipe.
