Fuel Line And Fuel Pump

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

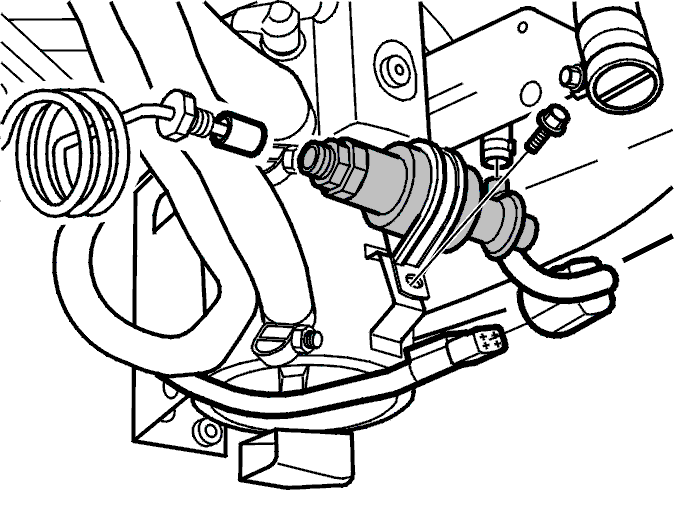

Fig 1: Identifying Fuel Line, Fuel Pump And Fuel Pump Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

WARNING: Protective gloves and protective goggles should be used for the following operations because of the risk of fuel spillage.

Remove screw holding clamp around fuel pump.

Remove lower clamp on fuel line and disconnect fuel line from fuel pump.

Disconnect fuel pump connector.

Remove fuel pump.

Transfer clamp to the new pump.
