Fuel Line

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

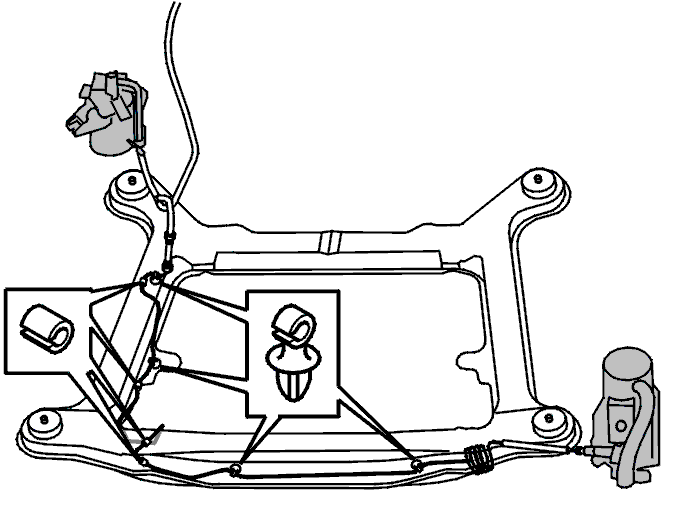

Fig 1: Identifying Fuel Line, Quick-Release Fuel Hose Connector And Sub-Frame Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the new fuel line.

NOTE: Take care not to bend the fuel line out of its original shape.

Connect the fuel line to the fuel pump by hand.

Remove the drill bit plugging the quick-release connector.

Connect the fuel line to the quick-release fuel hose connector.

A clicking sound should be heard when the quick-release connector engages.

Install clips (4) on the sub-frame.

Adjust the spacer clips on the fuel line so that they are in the same position as they were on the old fuel line.

Screw the fuel line onto the fuel pump (11 mm wrench) (counterhold 14 mm wrench). Torque to 14 Nm .
