Replacing Fuel Injection Nozzle, Fan Motor And Nozzle Pipe: Installing: Engine

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

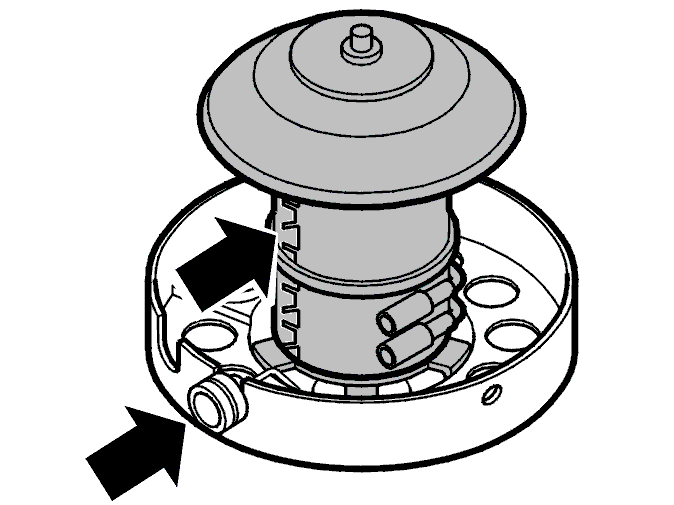

Fig 1: Motor And Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

motor holder on a new motor.
motor in motor mounting.

The nozzle pipe must be lined up with the fan motor joint.
