Atomizer And Fuel Injection Nozzle

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

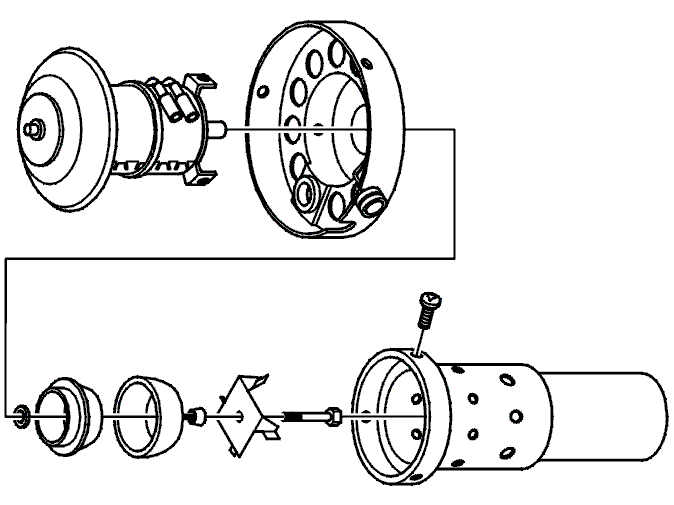

Fig 1: Identifying Atomizer, Conical Spacer, Outer Nozzle Head, Fuel Injection Nozzle And Washer

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

Atomizer
Conical spacer pointing towards the outer nozzle head.
Outer nozzle head
Fuel injection nozzle,
Washer

on the screw.

Then install the screw and components onto the fan motor spindle. Torque to 2 Nm .

Install combustion chamber.

NOTE: The glow plug socket must be to the left of the lead-in for the fan motor wiring.
